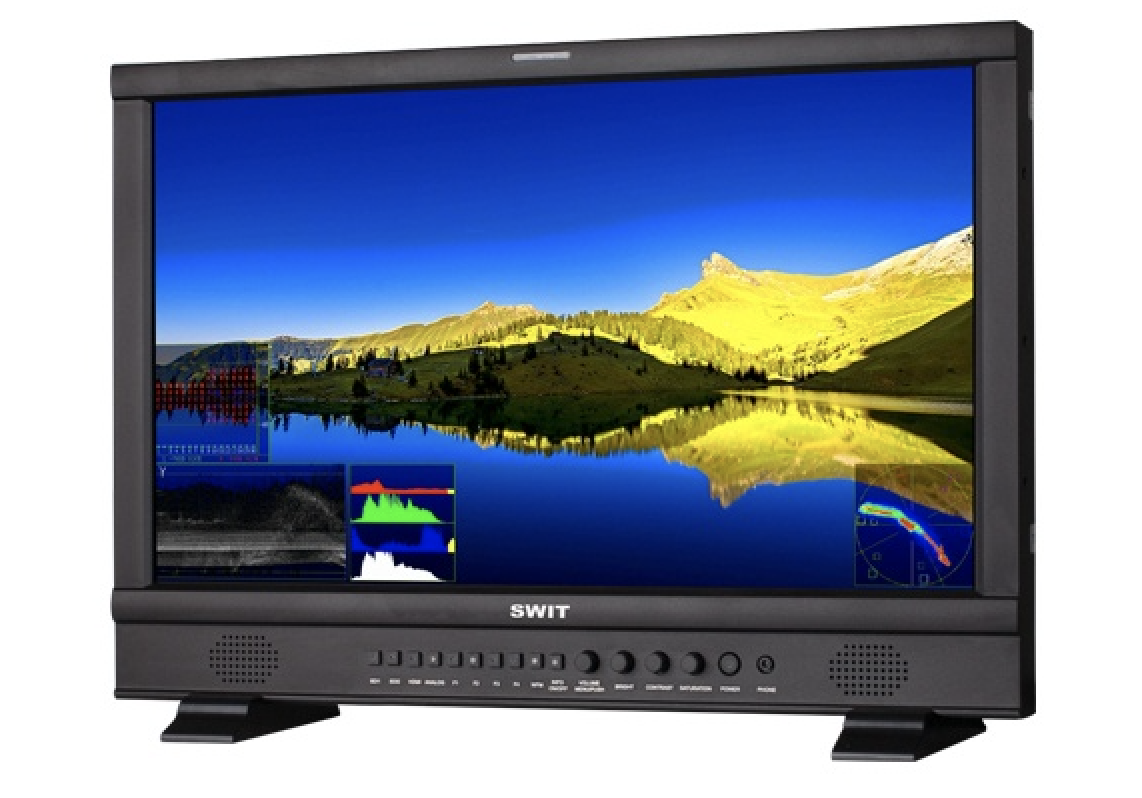

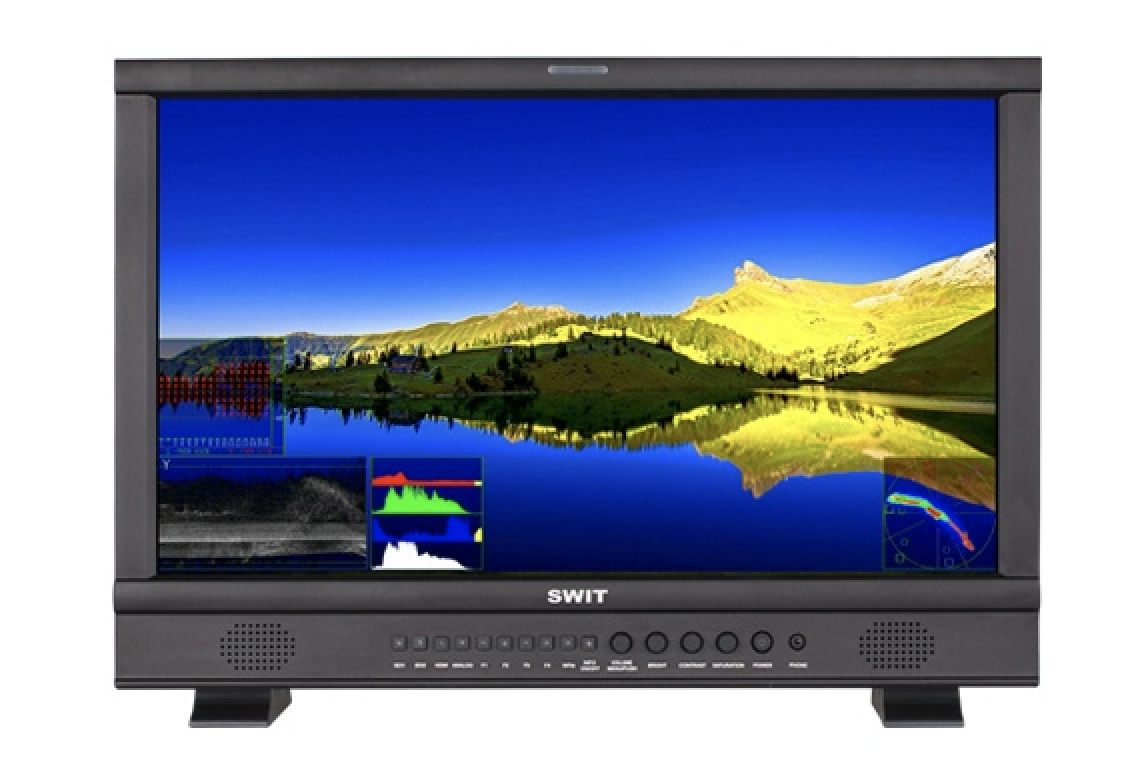

SWIT S-1223F Full HD Waveform Studio LCD Monitor




21.5-inch Full HD LCD Monitor

FFS-IPS LCD panel, LED backlight

S-1223F adopts a 21.5 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920×1080 resolution and LED backlight, 1000:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 178° / Vertical: 178°.

› 21.5-inch LCD Panel, 1920×1080 resolution

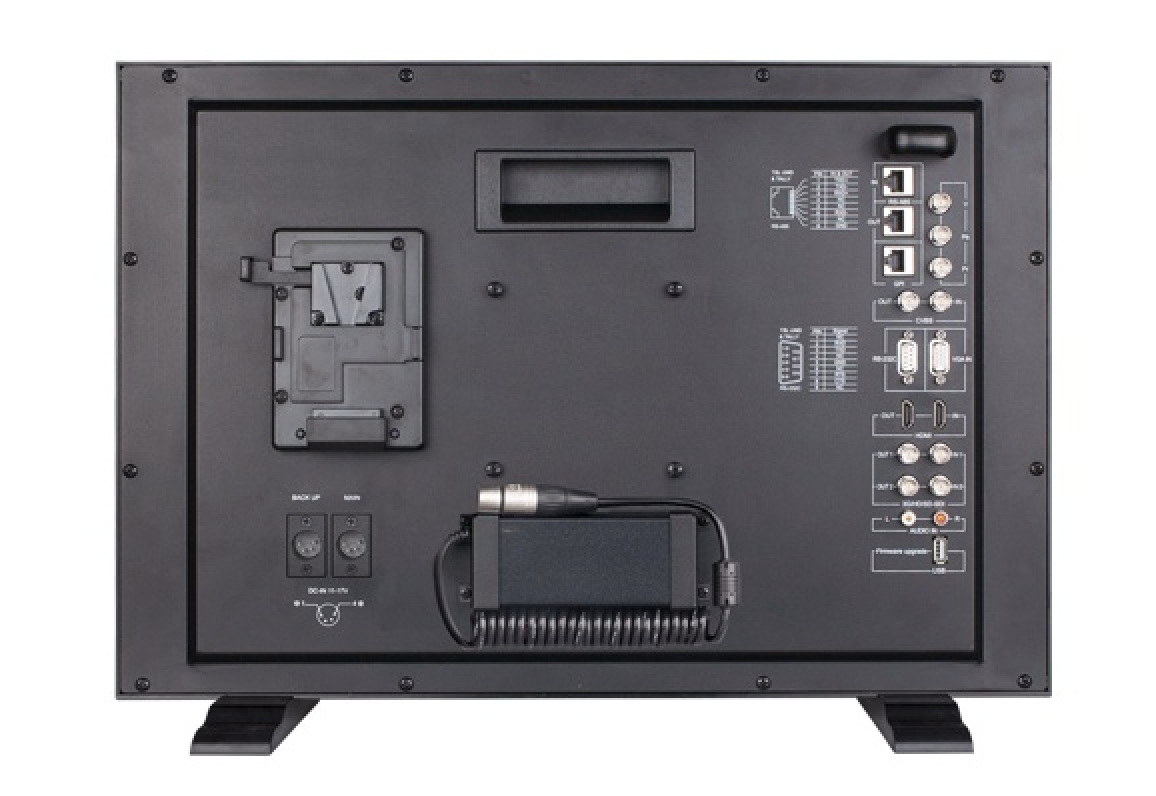

› 2K/3G/HD/SD-SDI( x2 ), HDMI monitoring

› Y/Pb/Pr, VGA, CVBS monitoring

› 3DLUT 17x17x17 color calibration

› Built-in Multiple De-log 3DLuts

› User LUTs upload by USB

› 16-ch Embedded audio meters with alert

› Select any 2 audio channels to output

› Waveform Y/Cb/Cr/R/G/B and single line

› Vector scope, histogram R/G/B/Y

› Peaking focus assist (red/blue switch)

› AFD, Timecode, H/V delay

› TSL UMD and text TALLY display

› Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1

› False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar

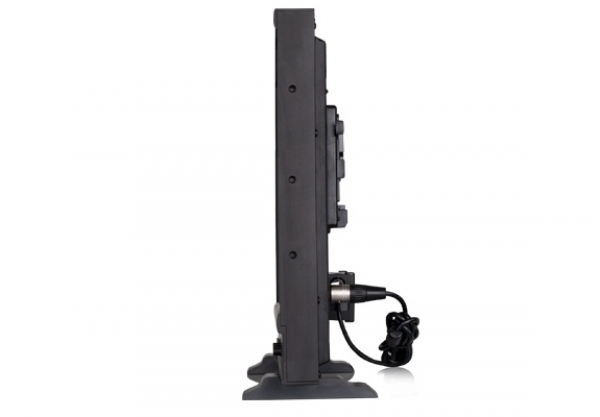

› V-mount / Gold mount battery plate optional

› USB firmware upgrade
