Description

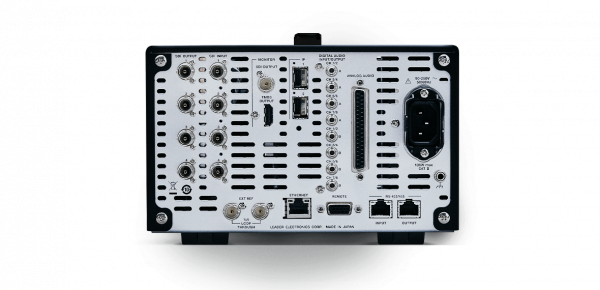

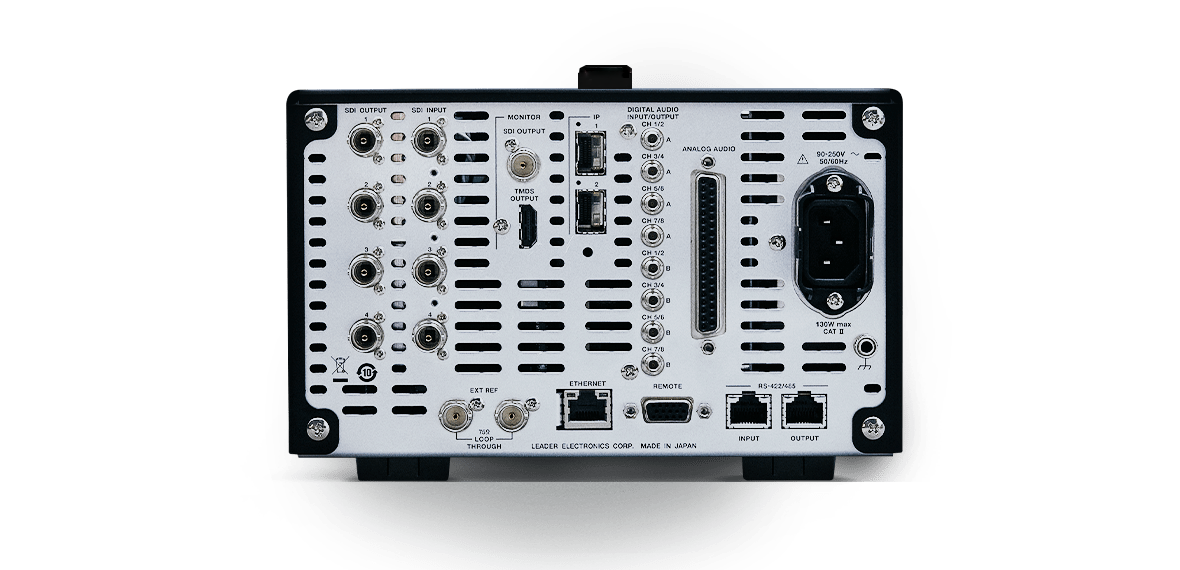

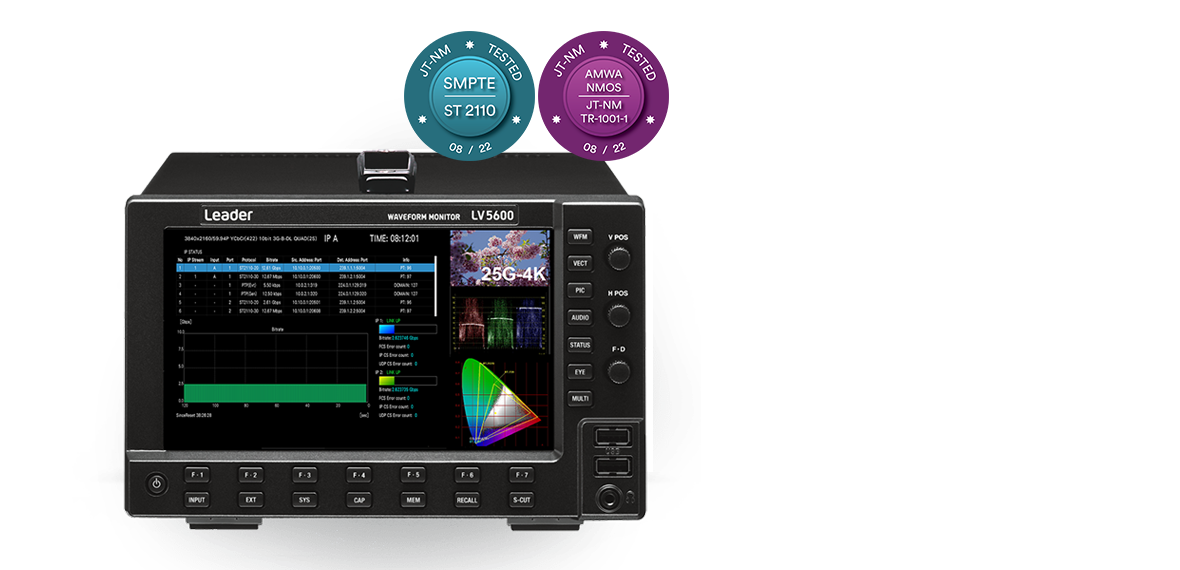

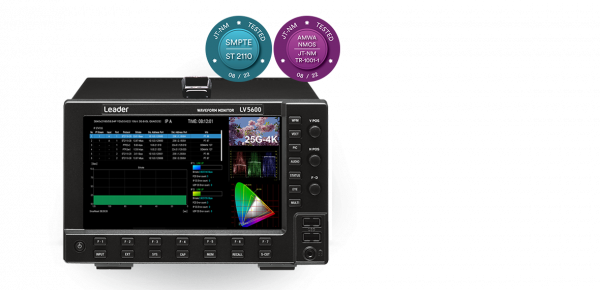

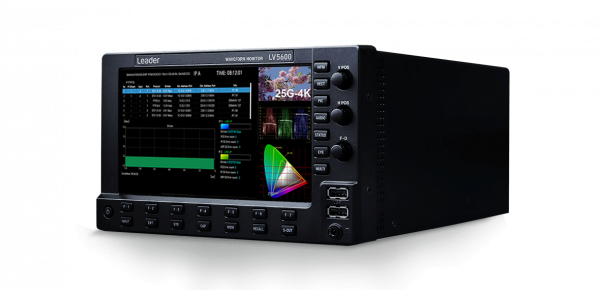

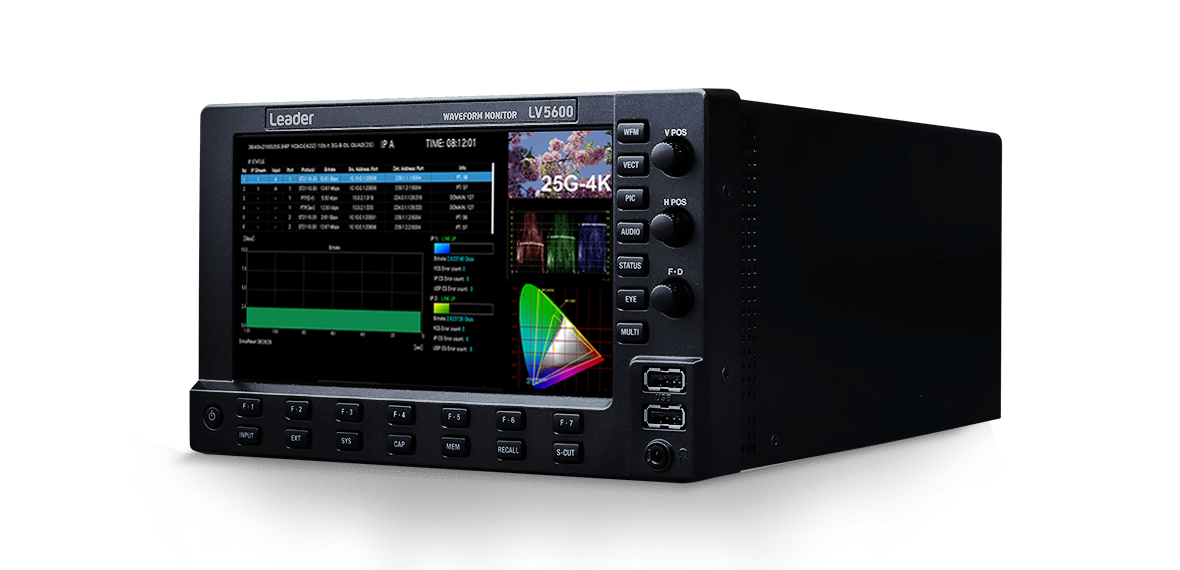

The LV5600 is a ‘True-Hybrid’ waveform monitor compatible with 4K/HD/SD-SDI signals and UHDTV/HD/SD IP signals. The LV5600 features a 7-inch touch screen display in a compact 3 RU enclosure with built-in AC power supply, and supports a variety of SDI signals up to 12G-SDI as well as video over IP. The waveform, vector, picture, audio, and eye pattern displays enable simple yet comprehensive measurements and quality control of the widest range of audio and video formats. The status display allows you to assess errors and system stability with both event logs and long-term charts.
For audio, these instruments support digitally embedded audio in SDI or IP streams as well as discreet digital and analog audio connections. Multi channel audio levels, Lissajous, status, and loudness displays are available.
With its combination of touch screen, dedicated buttons and knobs, and user-defined screen layouts the LV5600 allows complex measurement and monitoring tasks to be quickly completed. Designed with the future in mind, the LV5600 addresses your current and evolving video and audio testing needs.
Features
- Supports various signal inputs
It supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI single link, 3G-SDI dual link and quad link, HD-SDI quad link, 10G/25G IP (video over IP). - Excellent operability
The LV5600 adopts a 7-inch full HD panel with a touch panel function. - Eye pattern display
From SD-SDI to 12G-SDI
In the physical layer measurement of the SDI signal some eye pattern display, jitter display is possible. - Customizable layout
Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size. - SDI signal generation function
SDI signal generation function can handle from HD-SDI to 12G-SDI. - HDR
The HDR signal level monitoring and the level management at the assumed luminance (Nits) in a display considering OOTF are possible. - Focus Assist
We developed a new focus detection algorithm based on nonlinear super-resolution technology; accordingly the focus with high sensitivity can be detected even with low-contrast images, which were conventionally difficult to detect.
