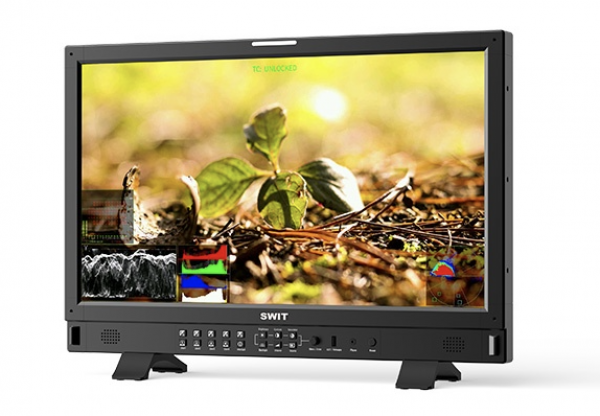

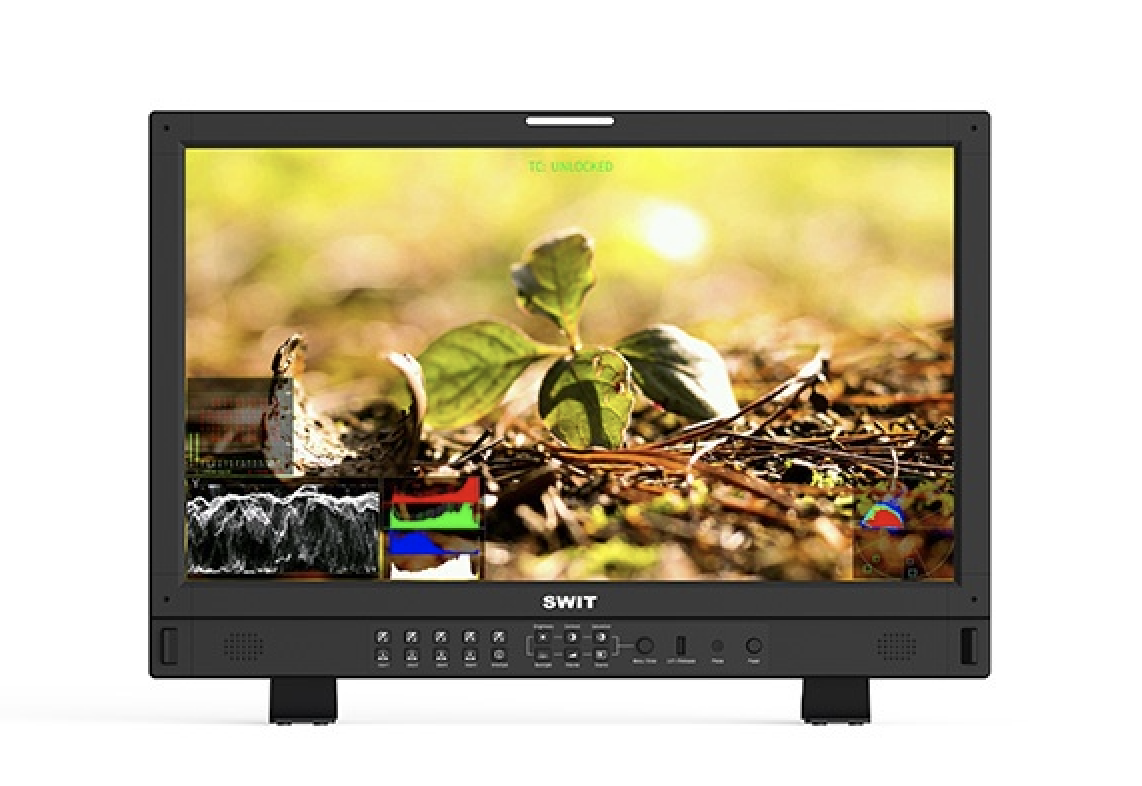

SWIT BM-U245 HDR 4K/8K 12GSDI HDR Studio Monitor




23.8-inch 1000nits 4K

UHD panel, 89% REC.2020

BM-U245HDR adopts a 23.8-inch 10-bit LCD
panel, UHD 3840×2160 resolution, 1000nits LED
backlight, 1000:1 contrast, 91.9% DCI-P3 and 89% Rec.2020 color gamut. The viewing angle is H178° / V178°.

› 23.8-inch LCD Panel, 3840×2160 resolution

› 1000nits high bright LED backlight

› HLG/PQ/S-log3 HDR

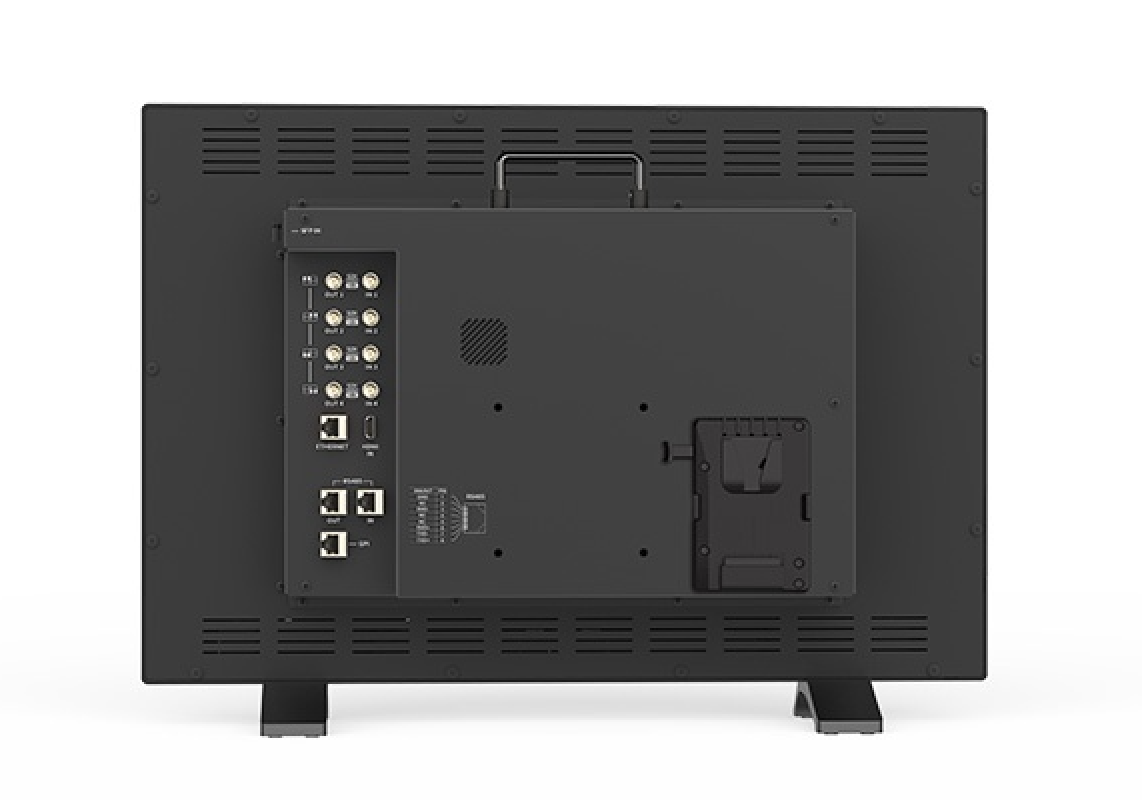

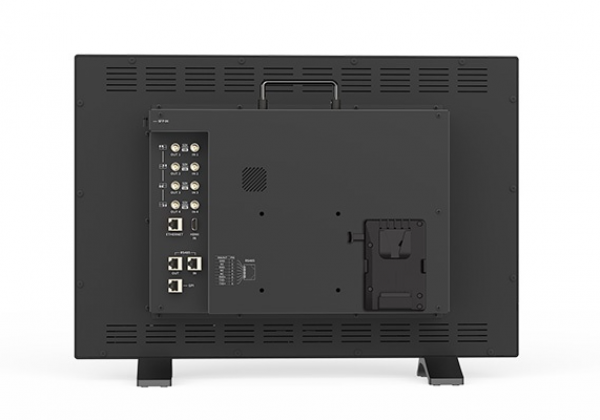

› 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input

› 12GSDI via SFP Fiber input (Optional)

› ST2110 IP via SFP Fiber input (Optional)

› SFP Fiber 12G input converted to 12GSDI out

› 3DLUT Auto Self-calibration without PC

› Audio/Video 0 latency for lip-sync

› Built-in Multi camera Delog LUTs

› User 3DLUTs upload via USB

› Waveform / Vector / Histogram

› Focus assist / False color / Zebra

› 16-ch audio meters / Lissajous

› IP webserver remote control

› TSL UMD and text TALLY display

› USB firmware upgrade
