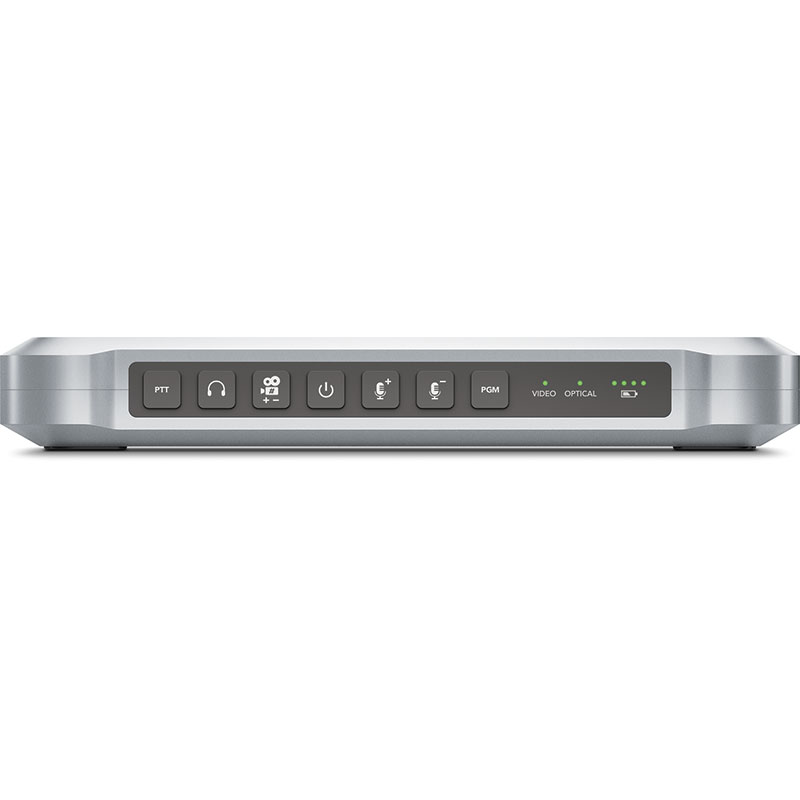

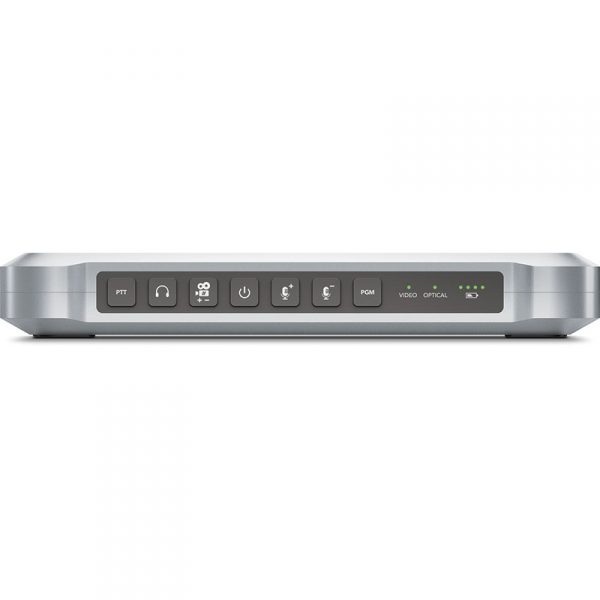

Description

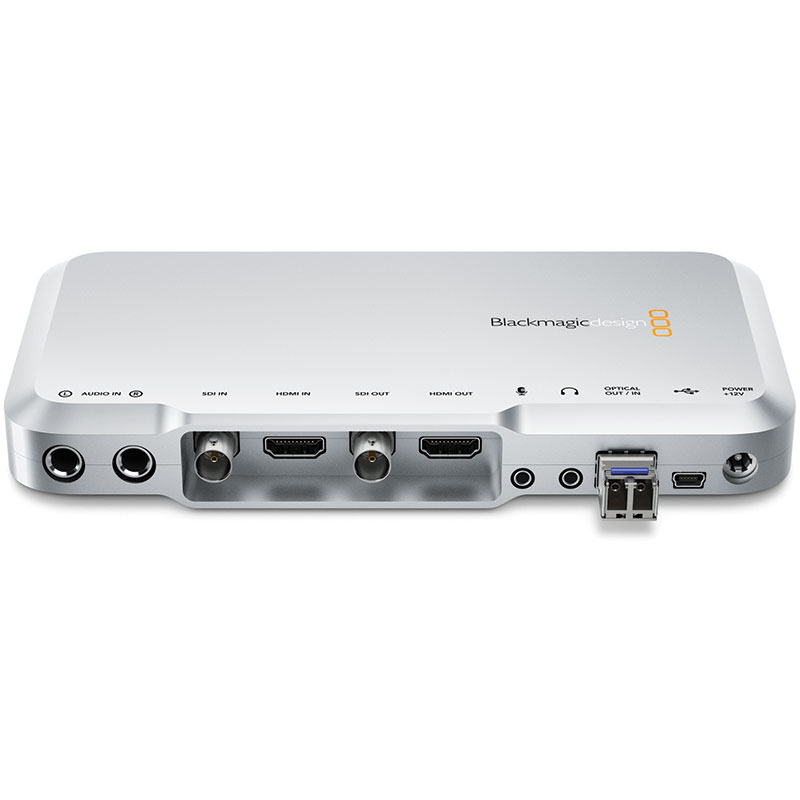

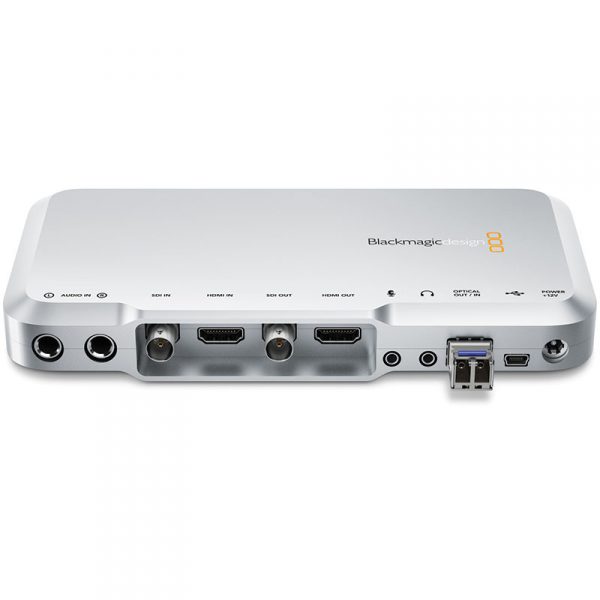

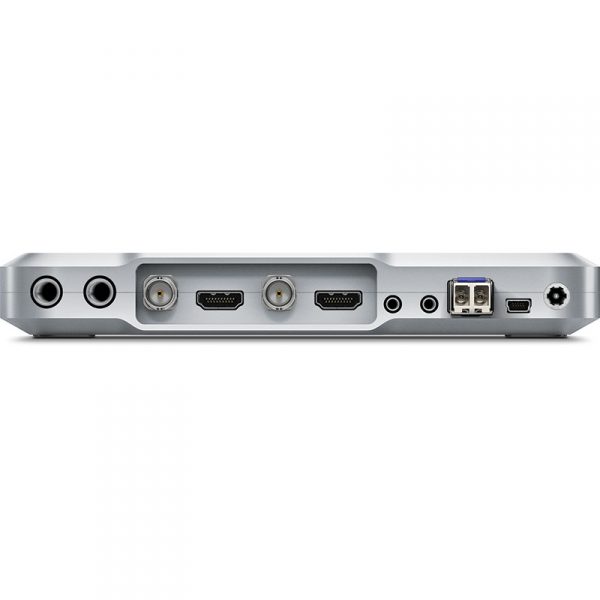

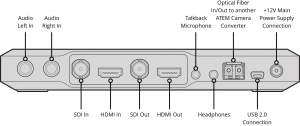

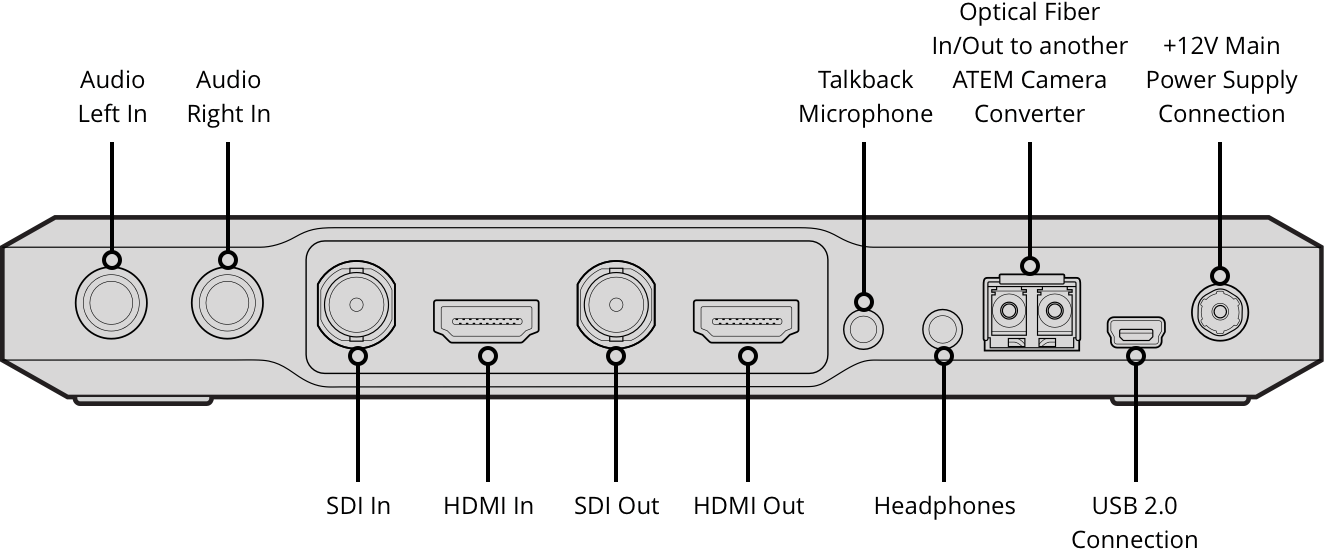

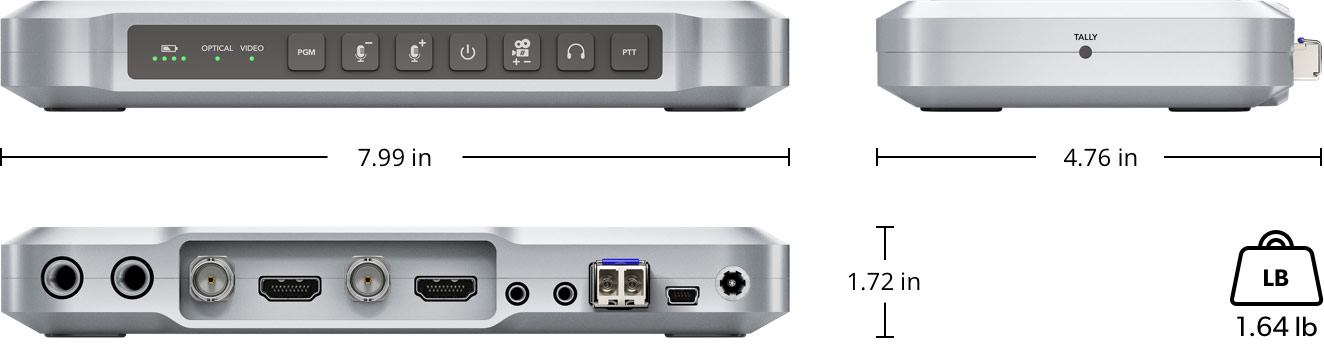

Connections
HDMI Video Input
1 x HDMI type A connector.
HDMI Video Output
1 x HDMI type A connector.
Talkback Audio
1 x 3.5mm stereo connector for talkback
microphone. 1 x 3.5mm stereo connector for stereo headphones, compatible with iPhone headsets.
Analog Audio
2 x balanced 1/4″ TRS connectors (stereo)
microphone level in. When connected, replaces
audio from SDI In or HDMI In.
Optical Fiber Video Input
1 x single mode SD/HD switchable with LC connector.
Optical Fiber Video Output
1 x single mode SD/HD switchable with LC connector
Optical Fiber Audio Input
1 x single mode camera audio inputs with LC connector. Channels 1 & 2 are camera audio.
Channels 15 & 16 are intercom audio.
Optical Fiber Audio Output
1 x single mode camera audio outputs with LC connector. Channels 1 & 2 are camera audio.
Channels 15 & 16 are intercom audio.
Computer Interface
1 x mini-B type USB 2.0 connector for
initial setup, firmware updates and
Converter Utility software control.
Standards
SDI Format Support
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2K Format Support
1 2K DCI 24p, 2K DCI 25p
HDMI Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 59.94, 60
SDI Compliance
SMPTE 259M, SMPTE 292M.
Audio Sampling
Television standard sample rate
of 48Khz,24 bit A/D conversion.
Video Sampling
4:2:2
Color Precision
10‑bit
Color Space
REC 601, REC 709
Multiple Rate support
SDI and HDMI are switchable
between standard definitlon and high definition
