BLACKMAGIC MULTIVIEW 4

£455.00

Monitor any combination of SD, HD and Ultra HD sources all on the same screen, at the same time!

Category: Tags: , ,

Description

Introducing new MultiView HD

Introducing new MultiView 4 HD

Monitor up to four different SD andHD sources on the same display at the same time!

The new Blackmagic MultiView 4 HD model is a low cost multi viewer that lets you simultaneously monitor 4 different SDI video sources on a single display! Each view is a completely independent video monitor with overlays that you can turn on and off such as custom labels, audio meters and more. Full frame re-synchronization on each input lets you monitor any combination of video signals, even if they are different frame rates. The multi rate 3G-SDI connections are compatible with all existing SD and HD equipment and formats up to 1080p60, including Level A and B devices. Plus, you get both 3G-SDI and HDMI outputs so you can use traditional SDI displays or even low cost big screen televisions!

Choose from Three Great Models

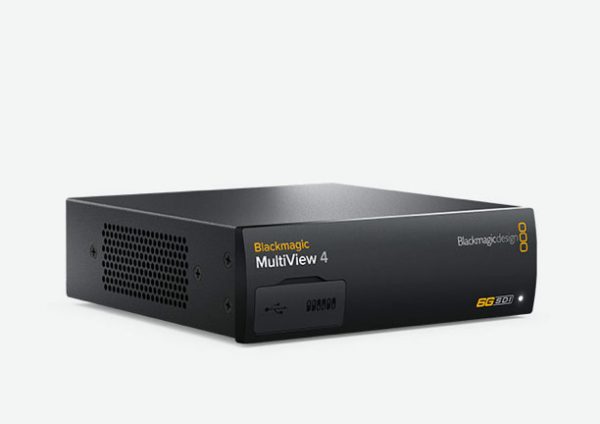

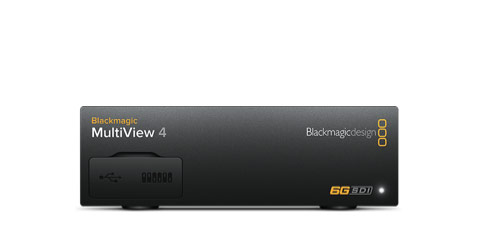

MultiView 4

The easiest SD, HD andUltra HD multi view you’ll ever use!

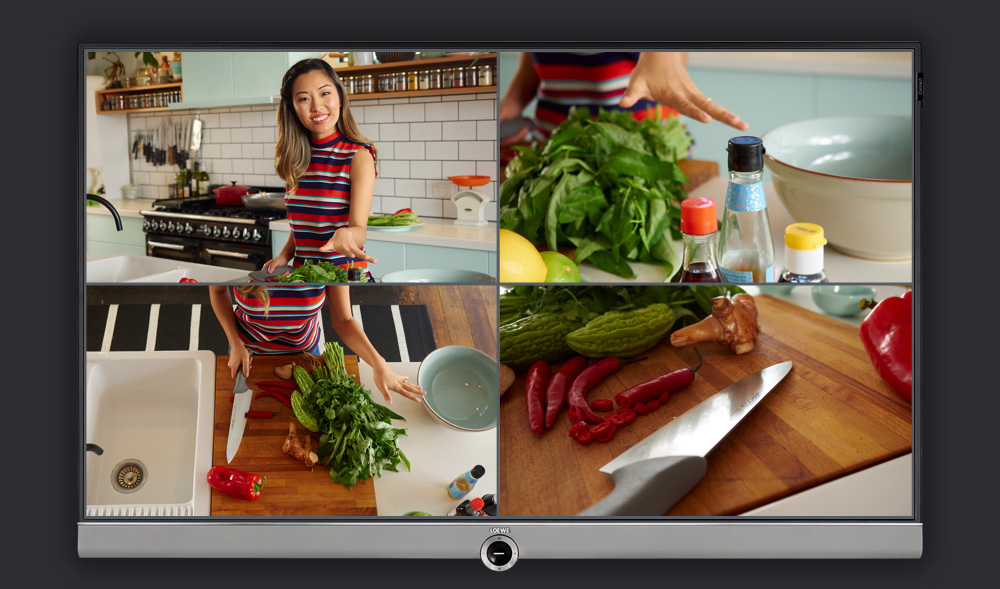

Blackmagic MultiView 4 has four independent 6G‑SDI inputs that work with all SD, HD and Ultra HD formats up to 2160p30. The included Ethernet remote control software lets you turn on audio meters, select audio to output, and create custom labels. MultiView 4 displays your sources in a standard 2×2 grid. You can also add a Teranex Mini Smart Panel for full front panel control and rack mount it using the optional Teranex Mini Rack Shelf!

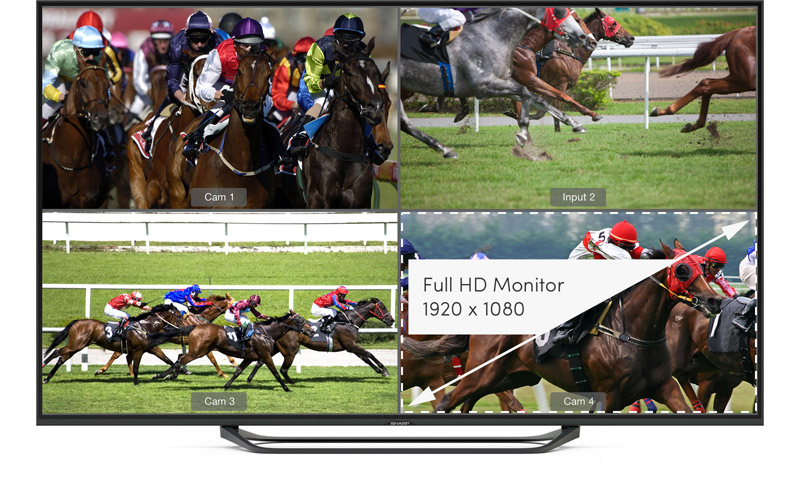

High Resolution Monitoring

All Blackmagic MultiView models work with HD displays, while the 6G-SDI models also work with Ultra HD displays, so you get maximum compatibility with your existing equipment. That means you can use regular HD displays but you also have the choice to use an Ultra HD monitor for incredible sharpness! Ultra HD has four times the number of pixels of regular HD, so your video will look sharper and clearer than ever before! What this means is when displaying the 2×2 view on an Ultra HD monitor, each view is a full 1920 x 1080 HD resolution with no scaling! MultiView includes both SDI and HDMI outputs so you can connect to televisions, video projectors, broadcast monitors and more!

Advanced Monitoring Tools

Advanced Monitoring Tools

Custom labels, tally, audio meters and more!

Blackmagic MultiViews feature advanced monitoring tools that can be displayed with your video. You get custom labels, audio meters, tally indicators and more! You can also choose which audio source is routed to the video output. The on screen source labels have a subtle, elegant design and resize proportionally based on the selected layout. In addition, you get anamorphic support in standard definition so you can view 16 x 9 anamorphic video sources in widescreen.

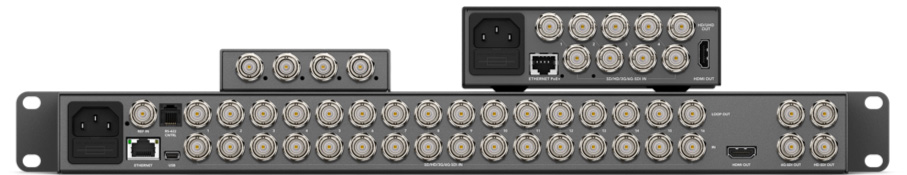

Multi Rate 6G-SDI Connections

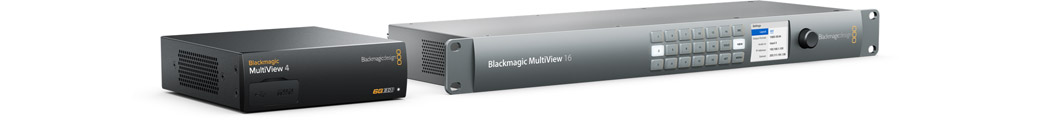

Flexible Design

Flexible Design!

Three great designs to fit any installation!

The tough metal mini converter style design of MultiView 4 HD makes it perfect for use on the road or in tough broadcast environments. Simply plug in your sources and start monitoring! The MultiView 4 works with HD or Ultra HD and features a Teranex Mini style design which means you can use it rack mounted or on a desktop. You can add an optional front panel or use Ethernet for more control options. MultiView 16 is designed for larger setups in which you need to view more sources on the same screen. You get router style front panel controls, a spin knob and LCD screen that make it fast to adjust settings, add overlays, and quickly route any source to any view on the grid!

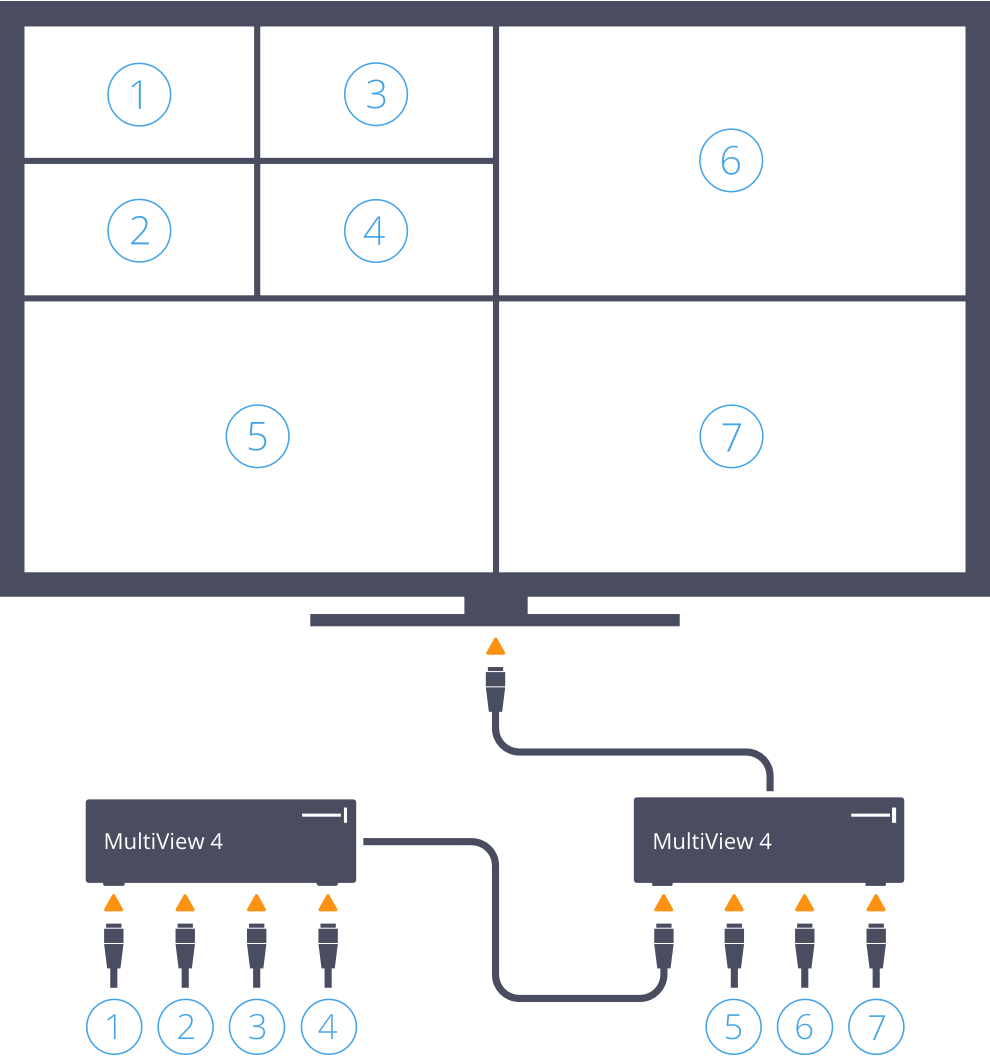

Multi MultiViews

Multi MultiViews

Create customized views with even more sources!

Blackmagic MultiView 4 handles 4 sources in an incredibly compact size, however if you have more sources, you can combine multiple MultiViews together to create customized displays! Simply daisy chain two together by connecting the output of one MultiView 4 to one of the inputs on another. That means you can now monitor seven sources at once, all on the same display! There’s no limit to how many units you can combine together to create your own customized display!

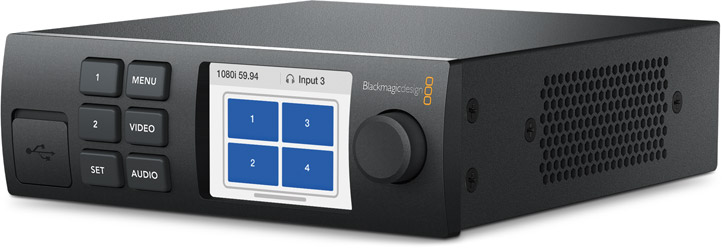

Optional Front Panel Controls

Optional FrontPanel Controls

Works withTeranex Mini Smart Panels!

Blackmagic MultiView 4 works with the optional Teranex Mini Smart Panel so you can add front panel controls to your MultiView 4! Installation is as simple as swapping the front panel and, once installed, it’s even easier to set up and adjust settings on the fly! The Smart Panel features dedicated buttons, a built in LCD screen and a spin knob so you can turn on custom labels, audio meters, borders, tally and more! You can even adjust settings such as the IP address and output video format right from the front panel!



Additional information

Manufacture

Blackmagic Design
